Ultra Mini 100 Red Light Therapy Panel
Ultra Mini 100 Red Light Therapy Panel
For people serious about red light therapy
The Ultra Mini 100 puts full-spectrum output and complete control into a compact panel. It has nine wavelengths and high irradiance, and every channel adjusts independently. It's chosen and supported by a clinical team that works with energy-based treatments every day.
Highlights
Clinic-grade output, compact footprint

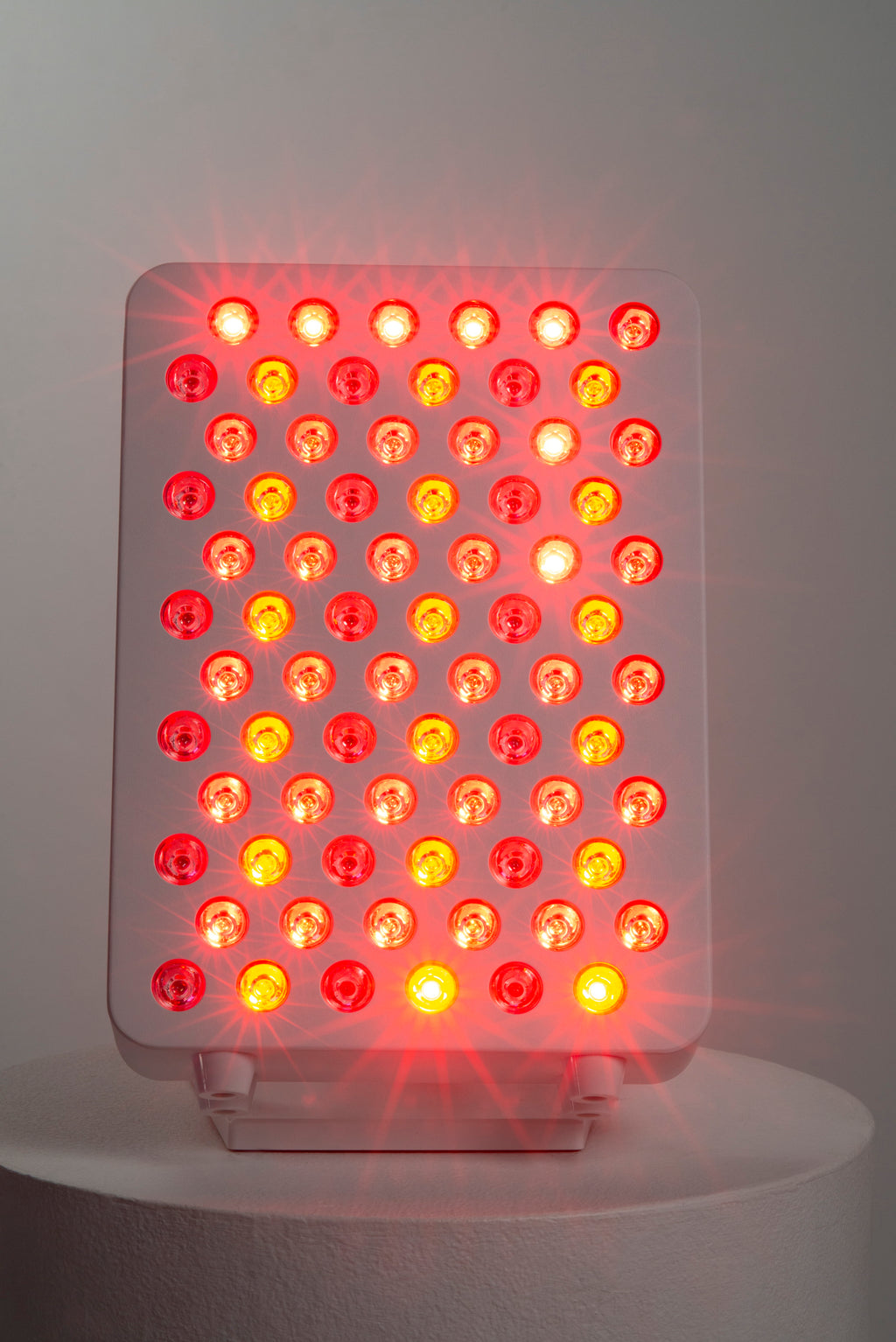

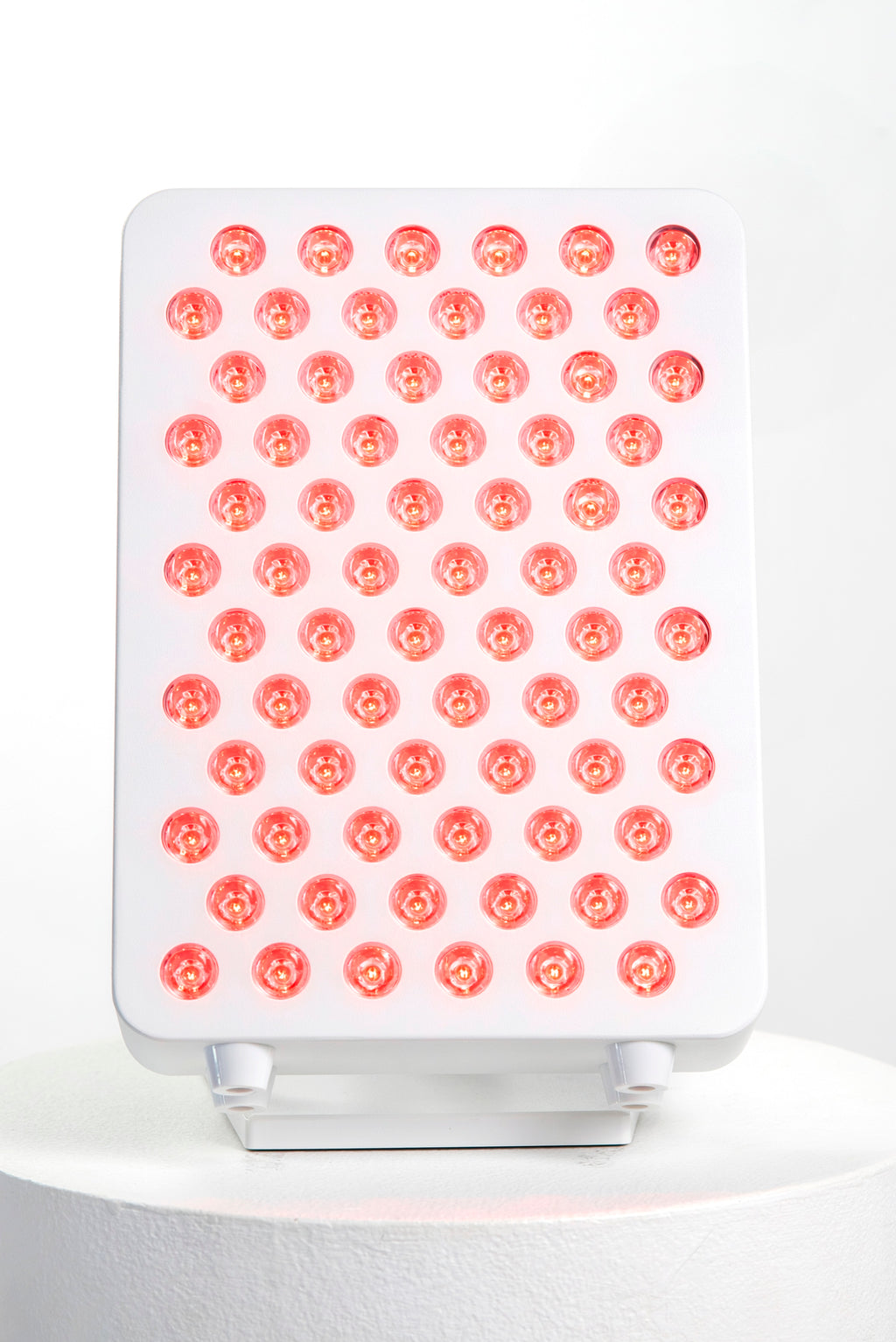

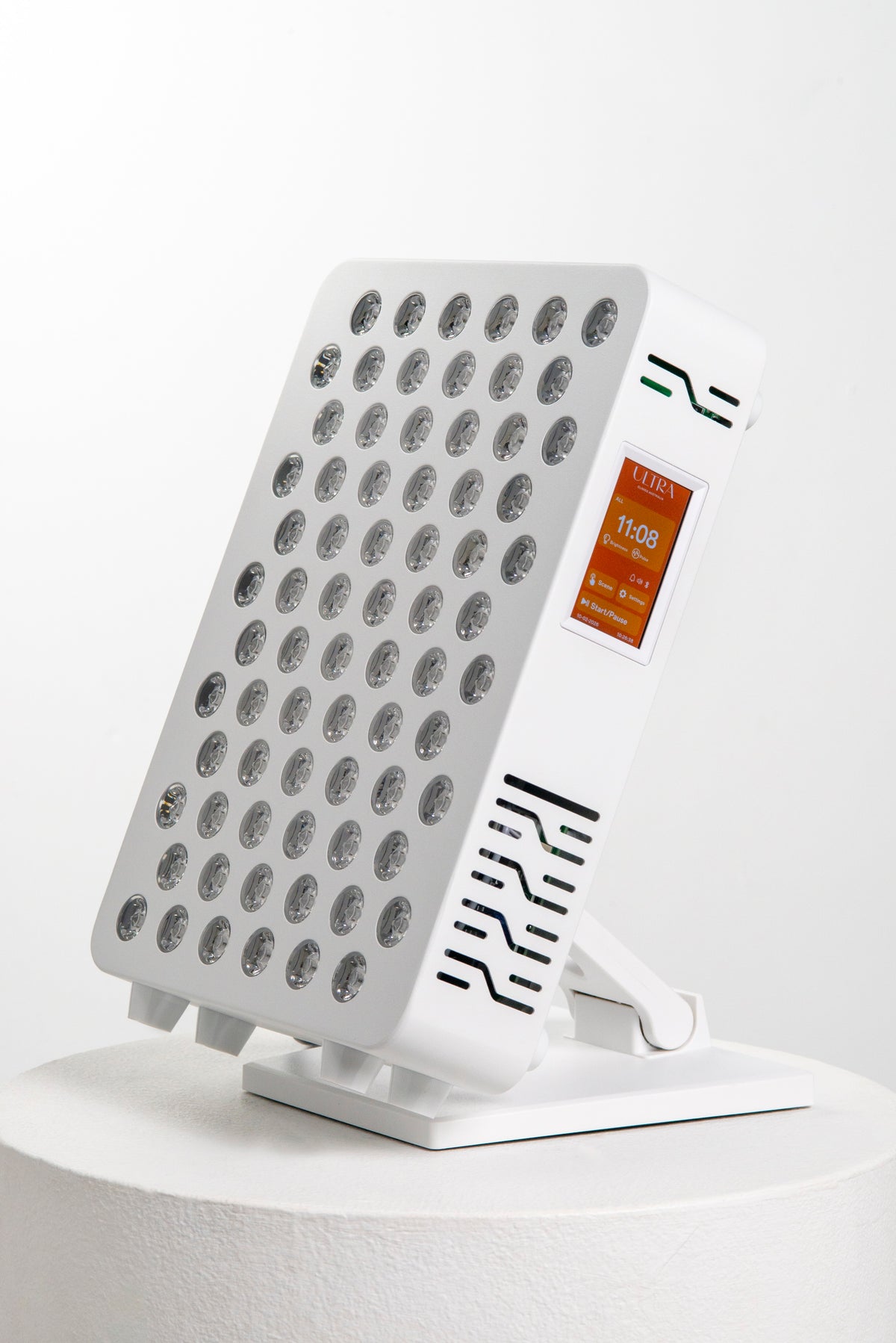

- 72 dual-chip LEDs across nine wavelengths, from 480nm to 1060nm
- ≥150 mW/cm² irradiance, measured at 15 cm (6 in)
- Individual wavelength control, with each channel dimmable from 1–100%
- Pulse or continuous output, adjustable from 1 to 10,000 Hz

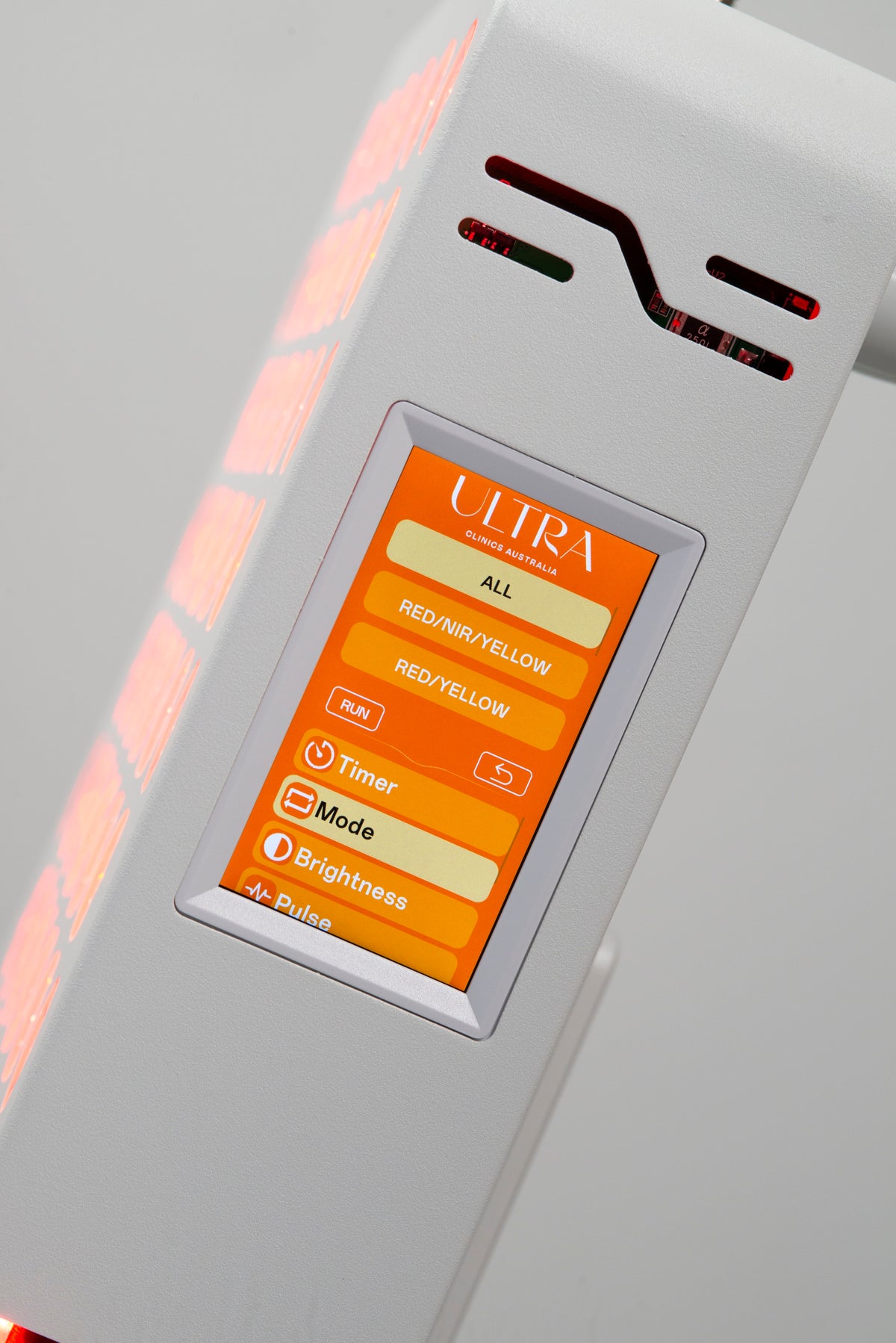

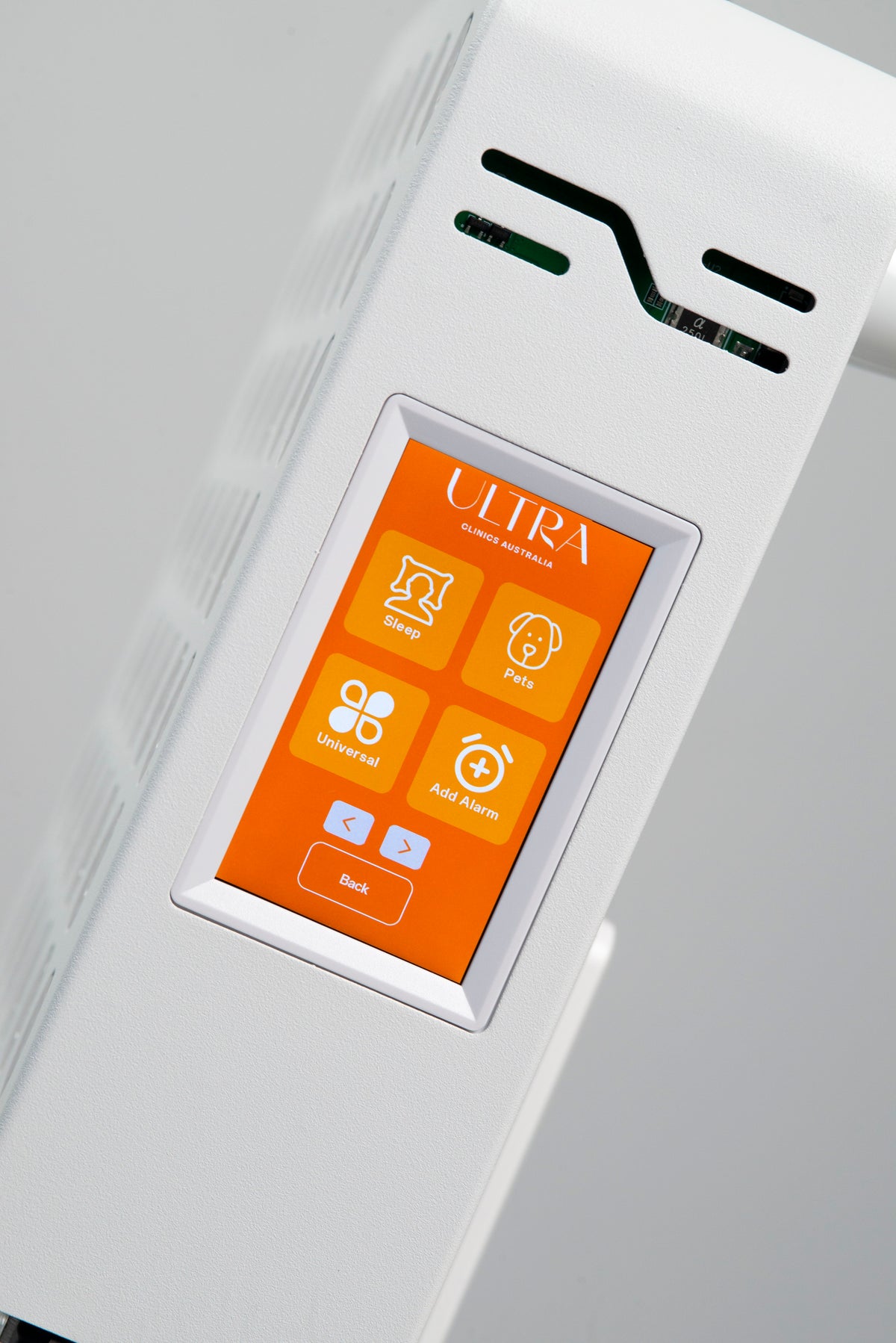

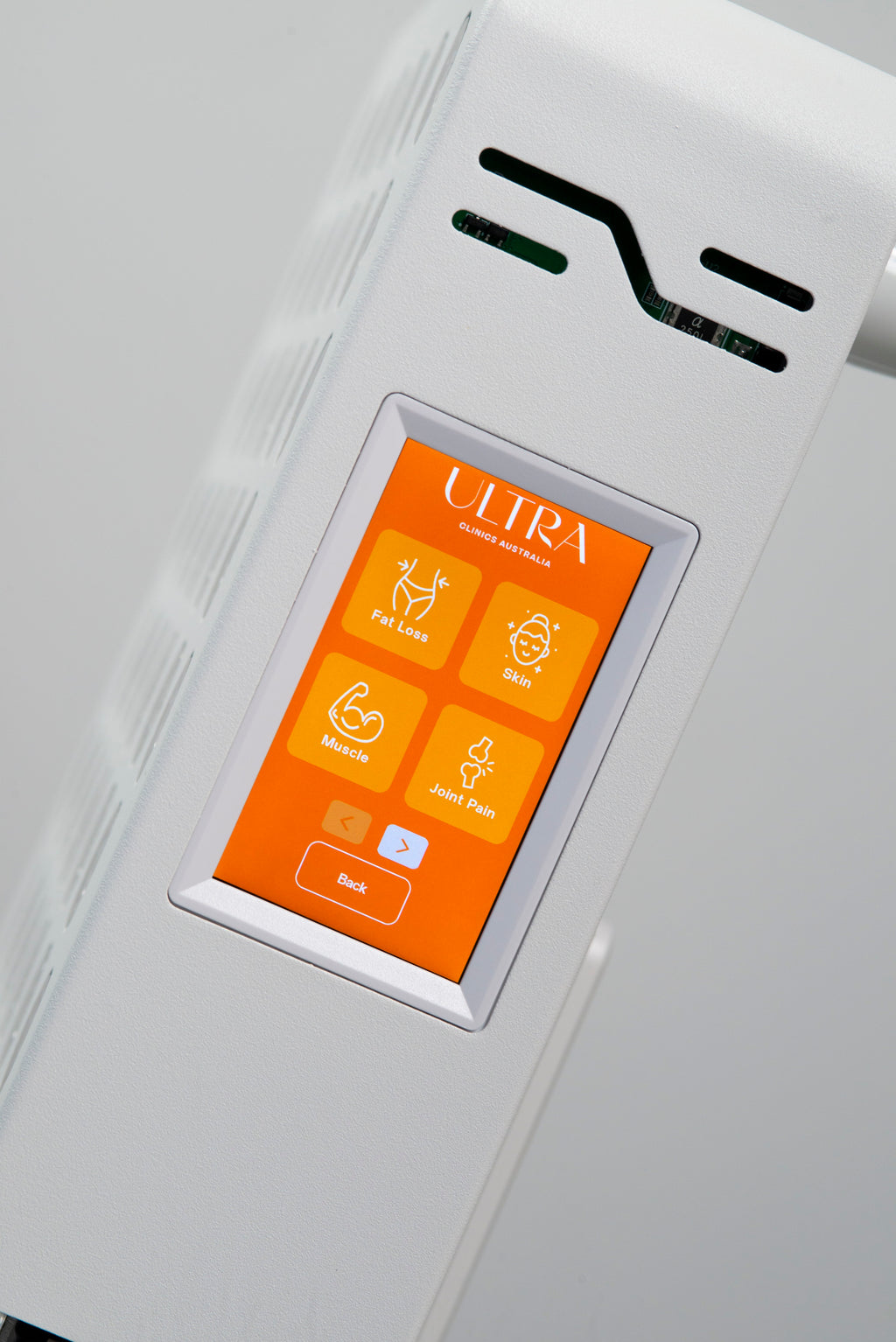

- Six built-in programs: Muscle, Joint, Sleep, Skin, Inflammation and Pets

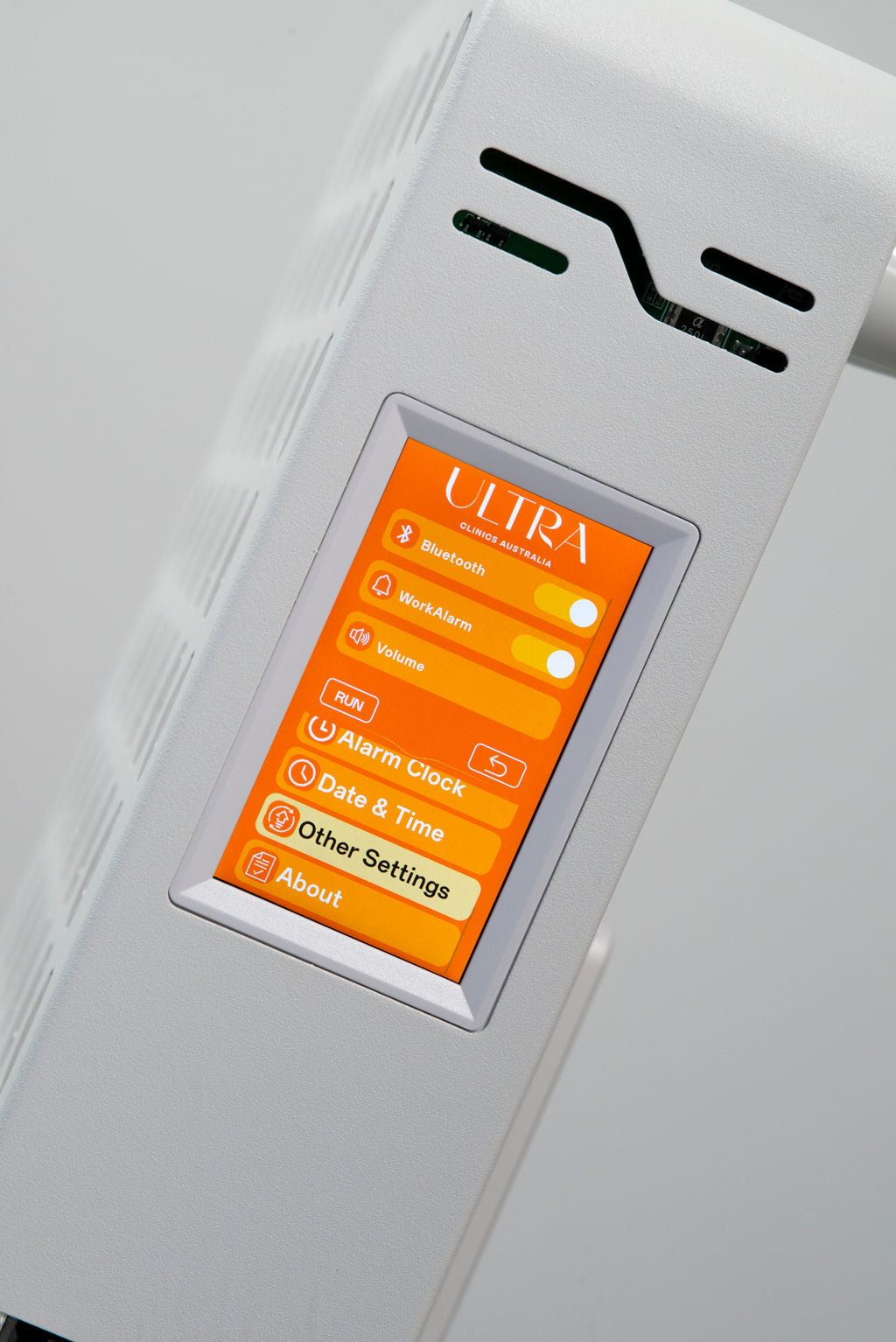

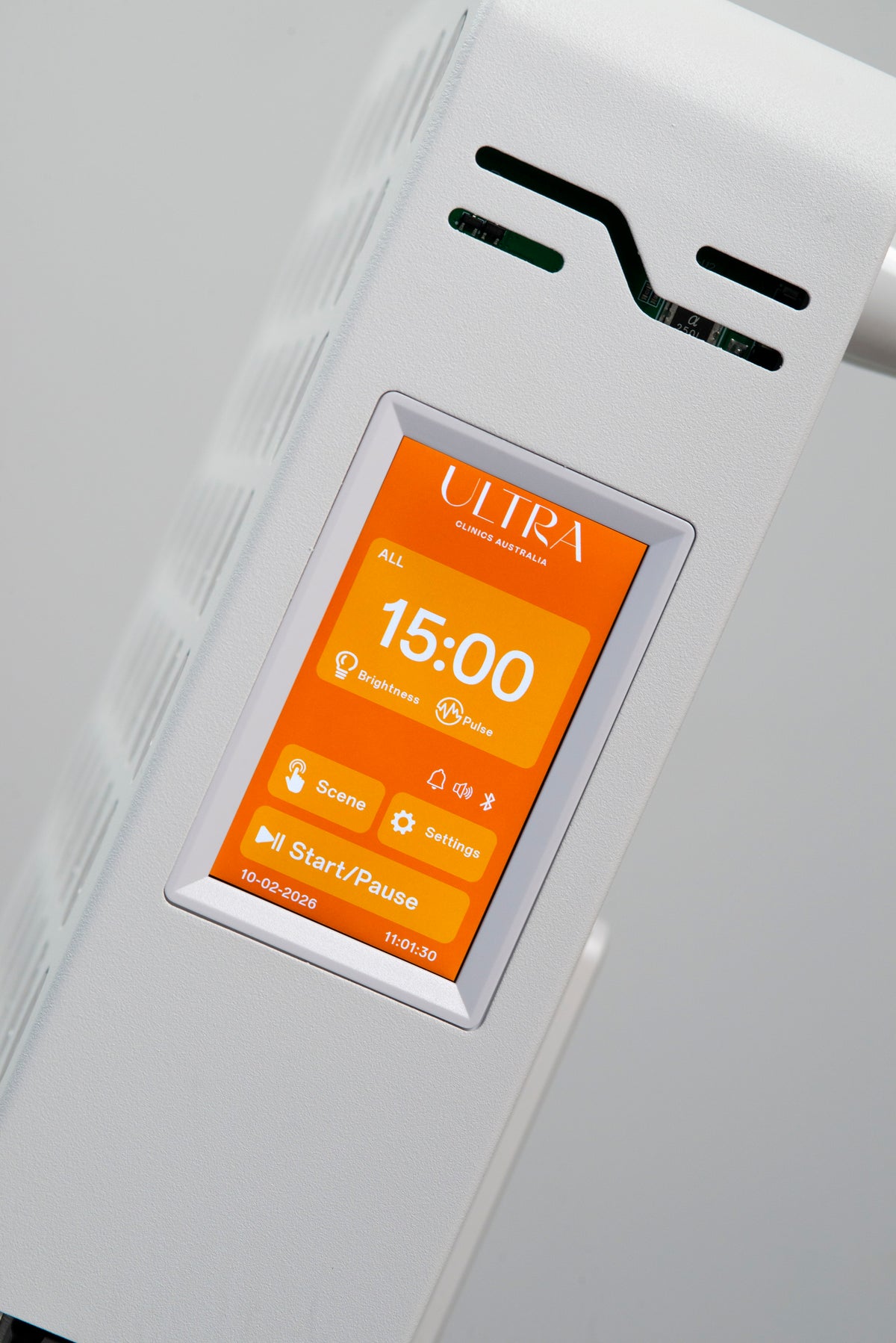

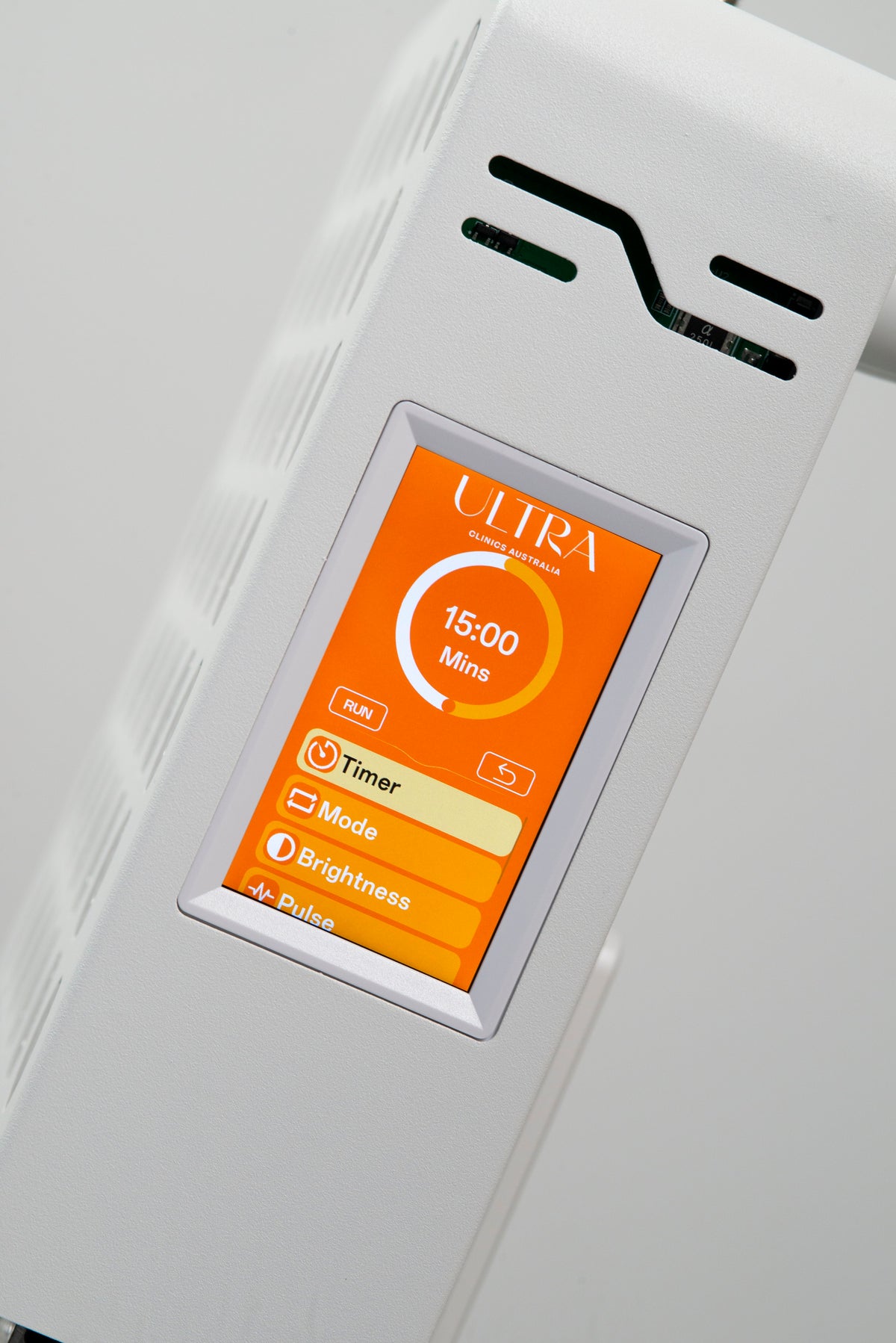

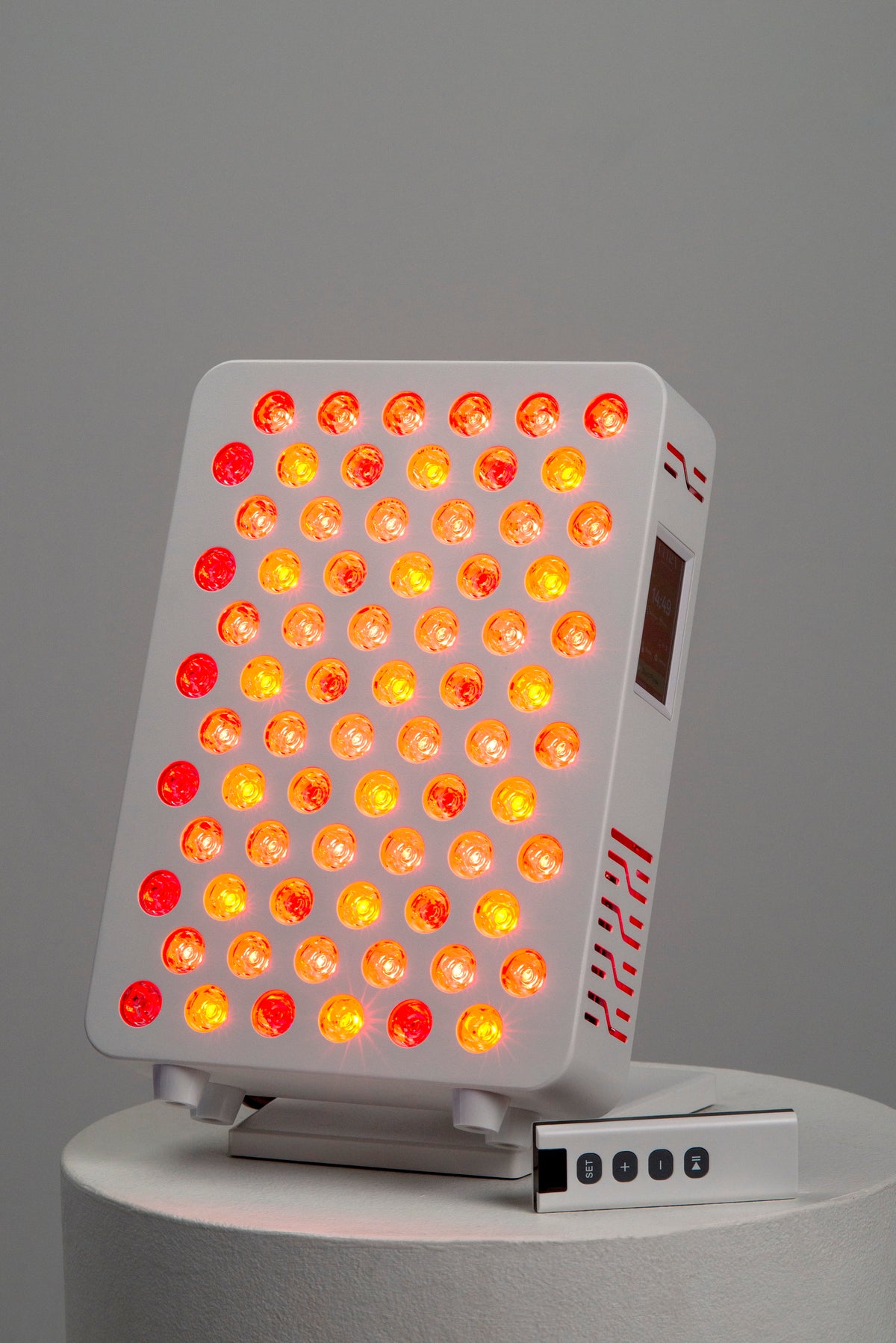

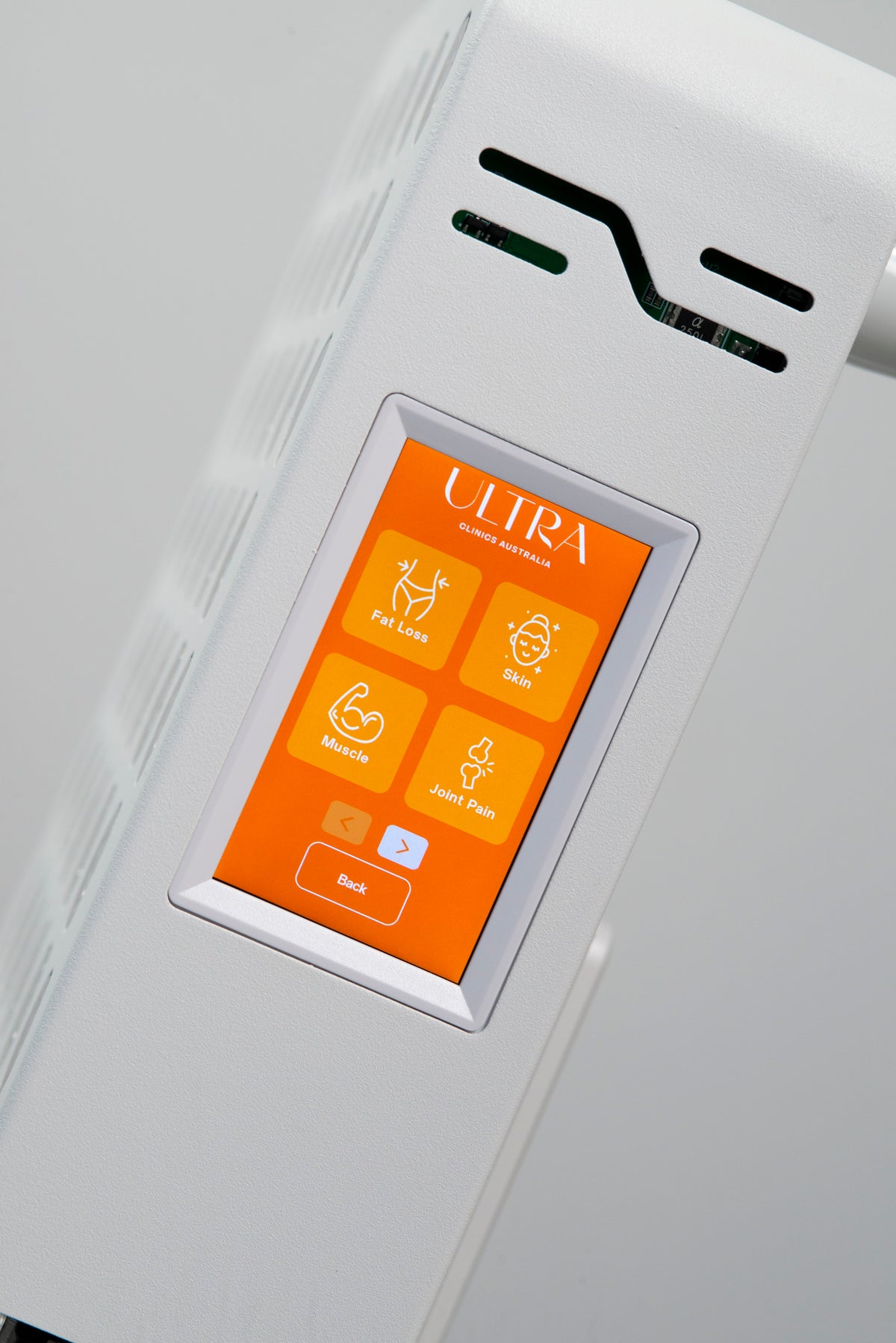

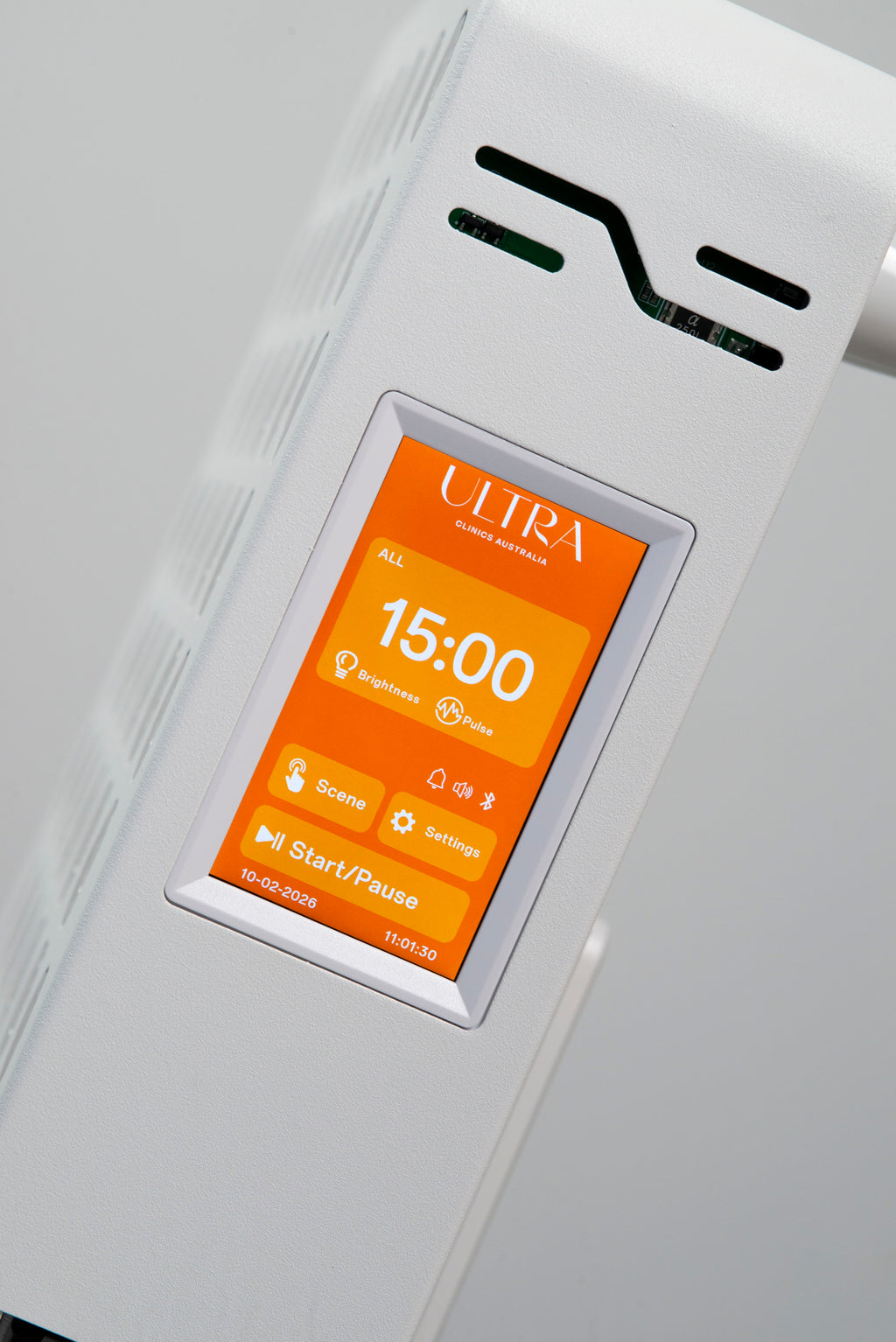

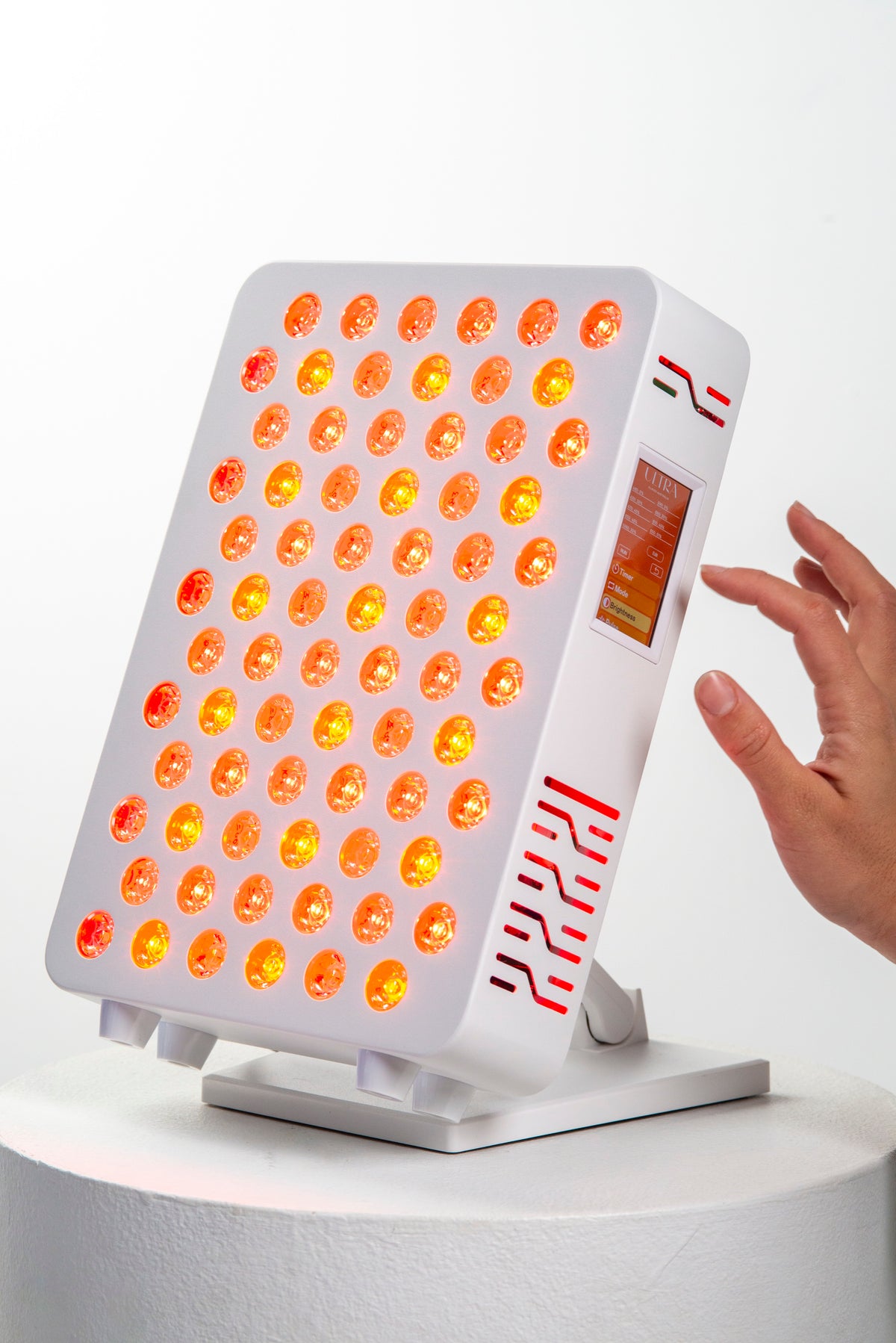

- Touchscreen controls plus a remote, so you can adjust settings mid-session

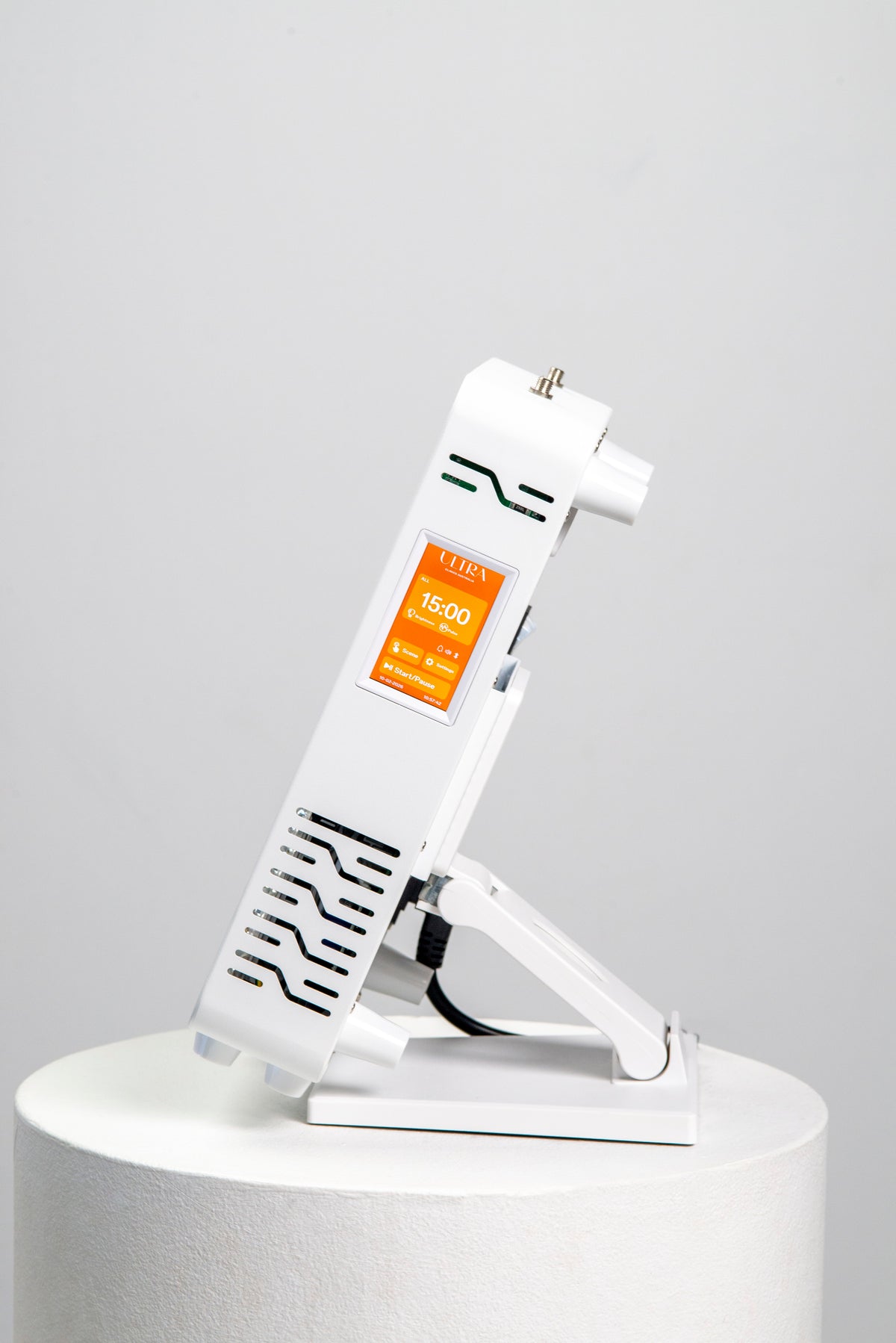

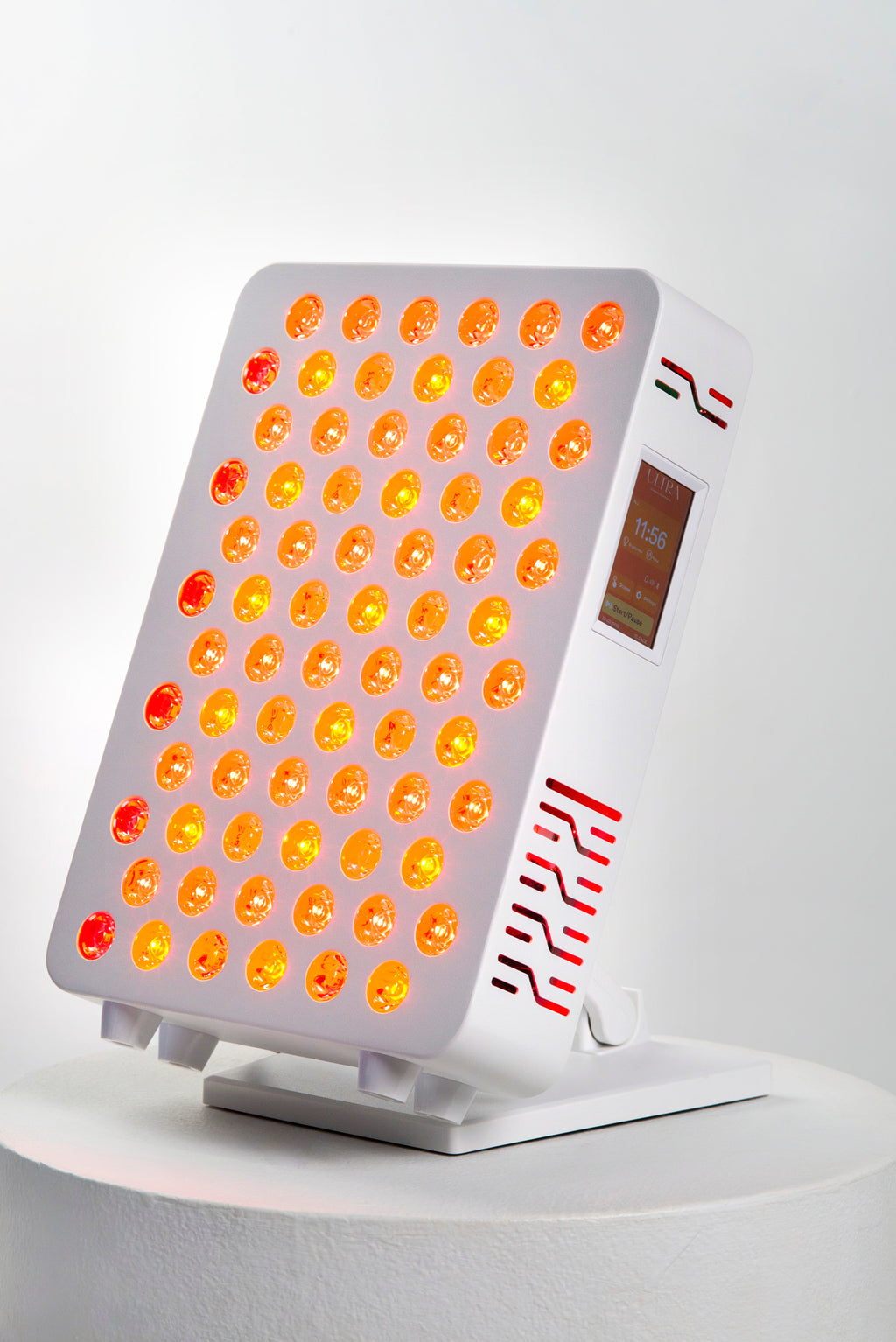

- Compact and portable, it sits neatly on a desk, bench or bedside table
The wavelengths

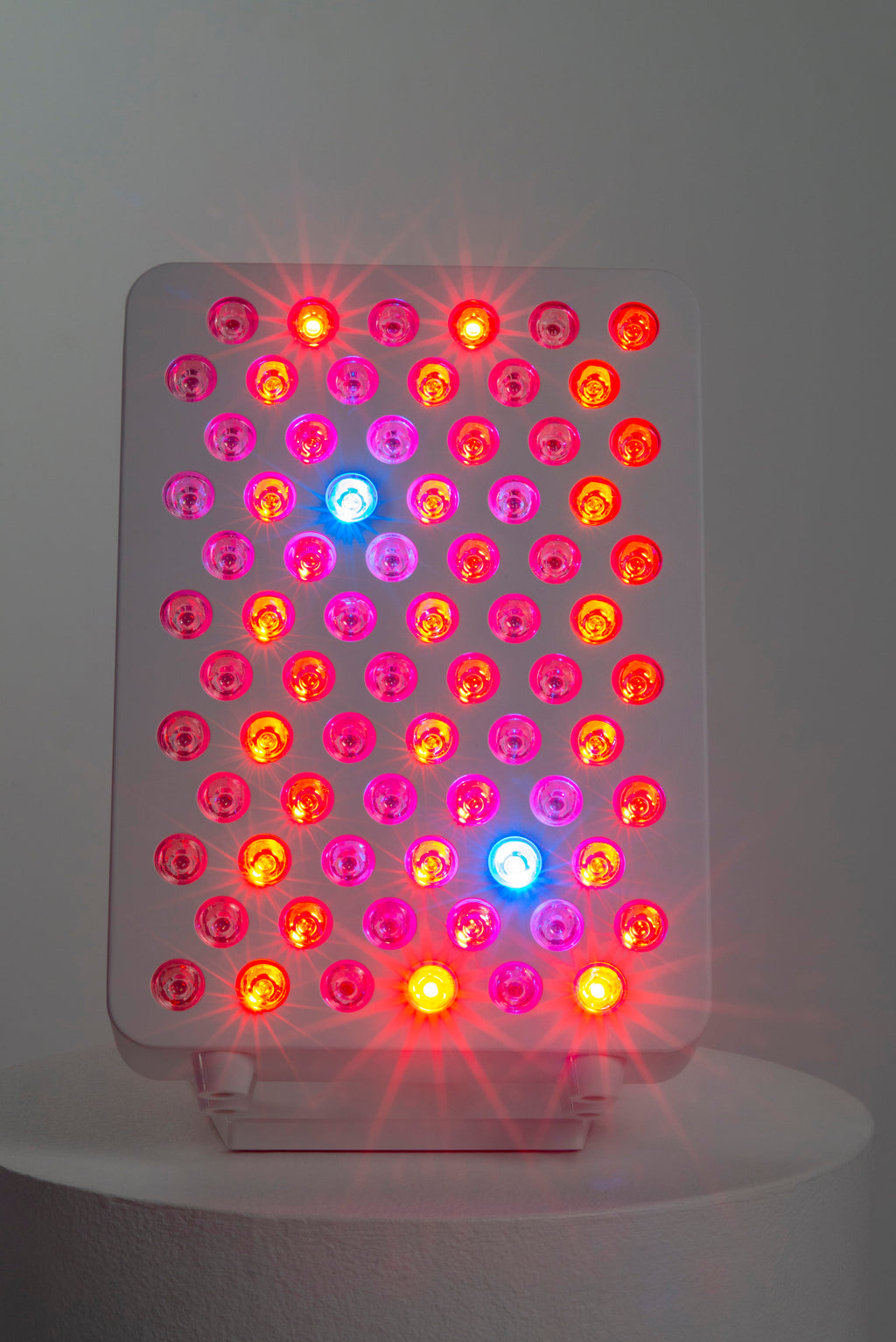

Nine wavelengths, from surface to depth
- 480nm blue and 590nm amber: shorter wavelengths that work at the surface of the skin
- 630, 660 and 670nm red: the most widely studied range in photobiomodulation research
- 810, 830 and 850nm near-infrared: invisible light that reaches deeper than visible red
- 1060nm infrared: the longest wavelength in the panel, for the deepest reach
Complete control
Every channel, set your way

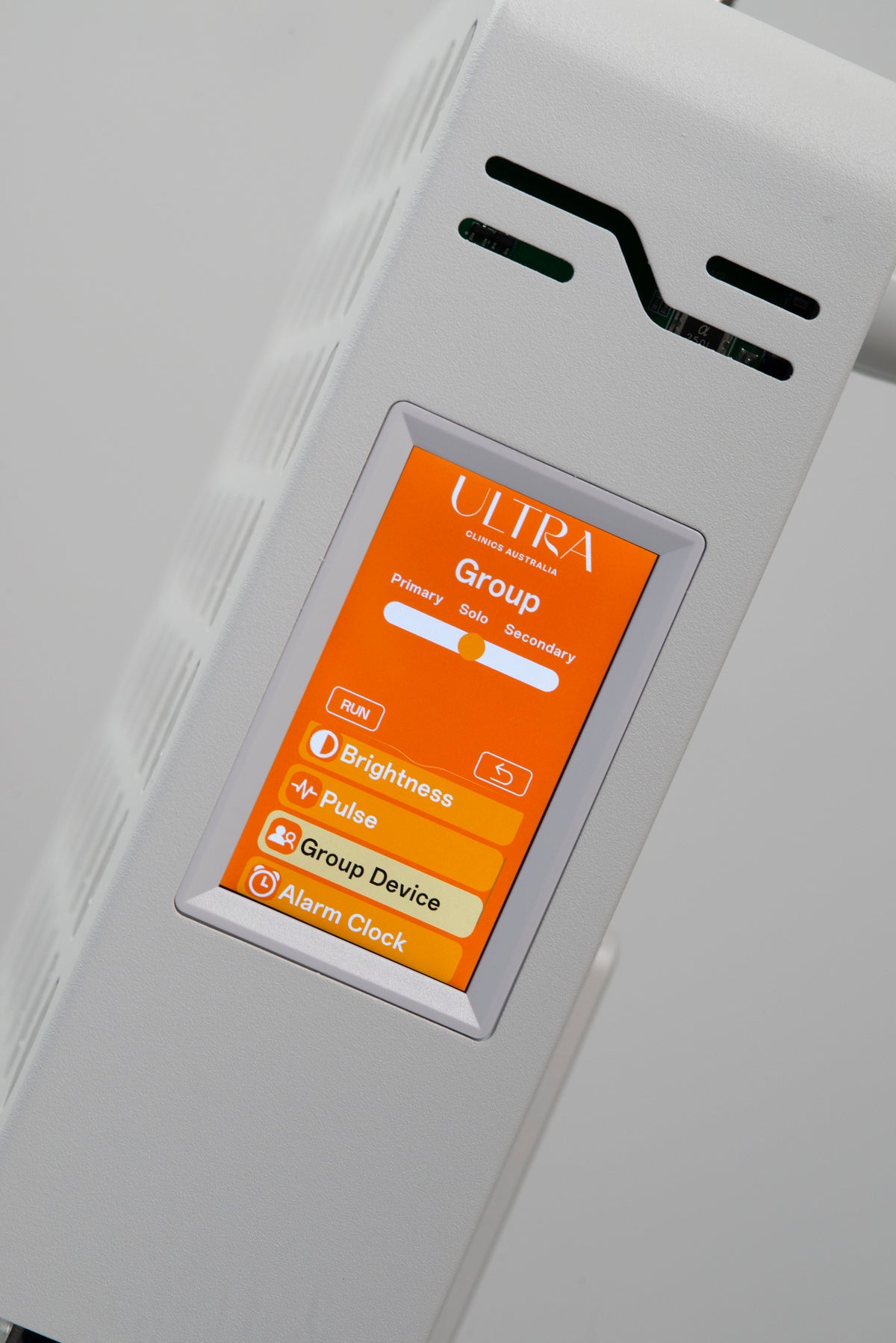

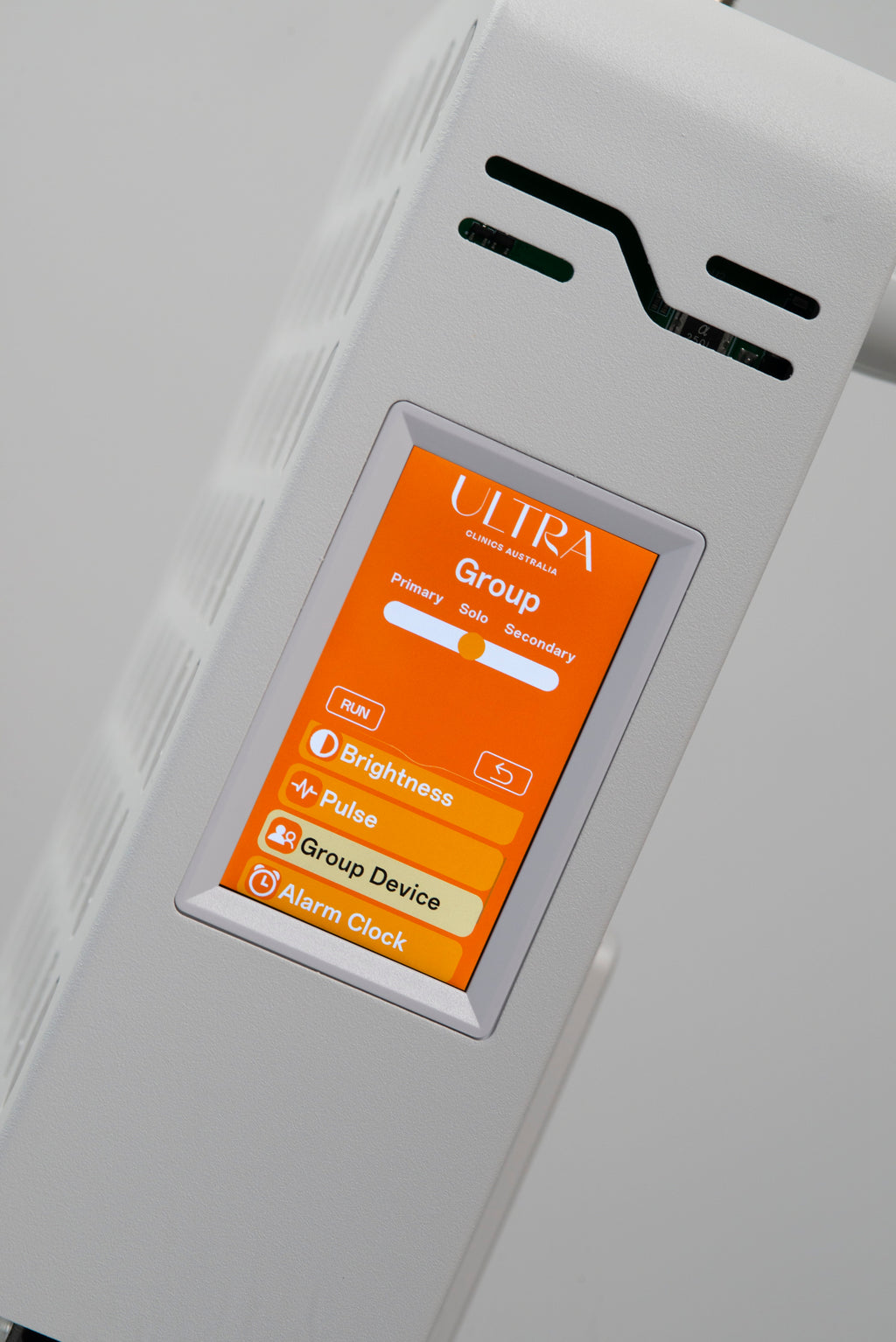

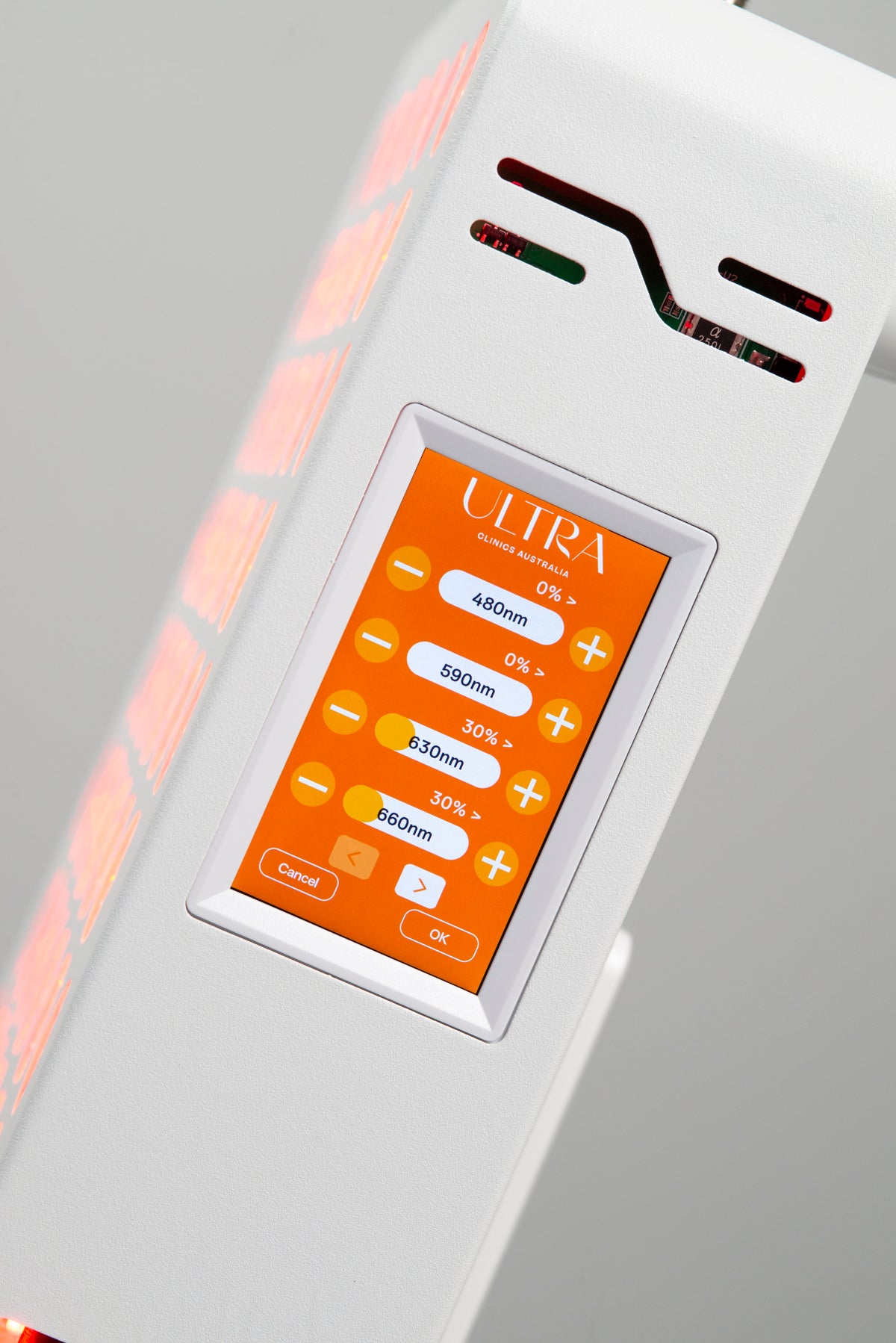

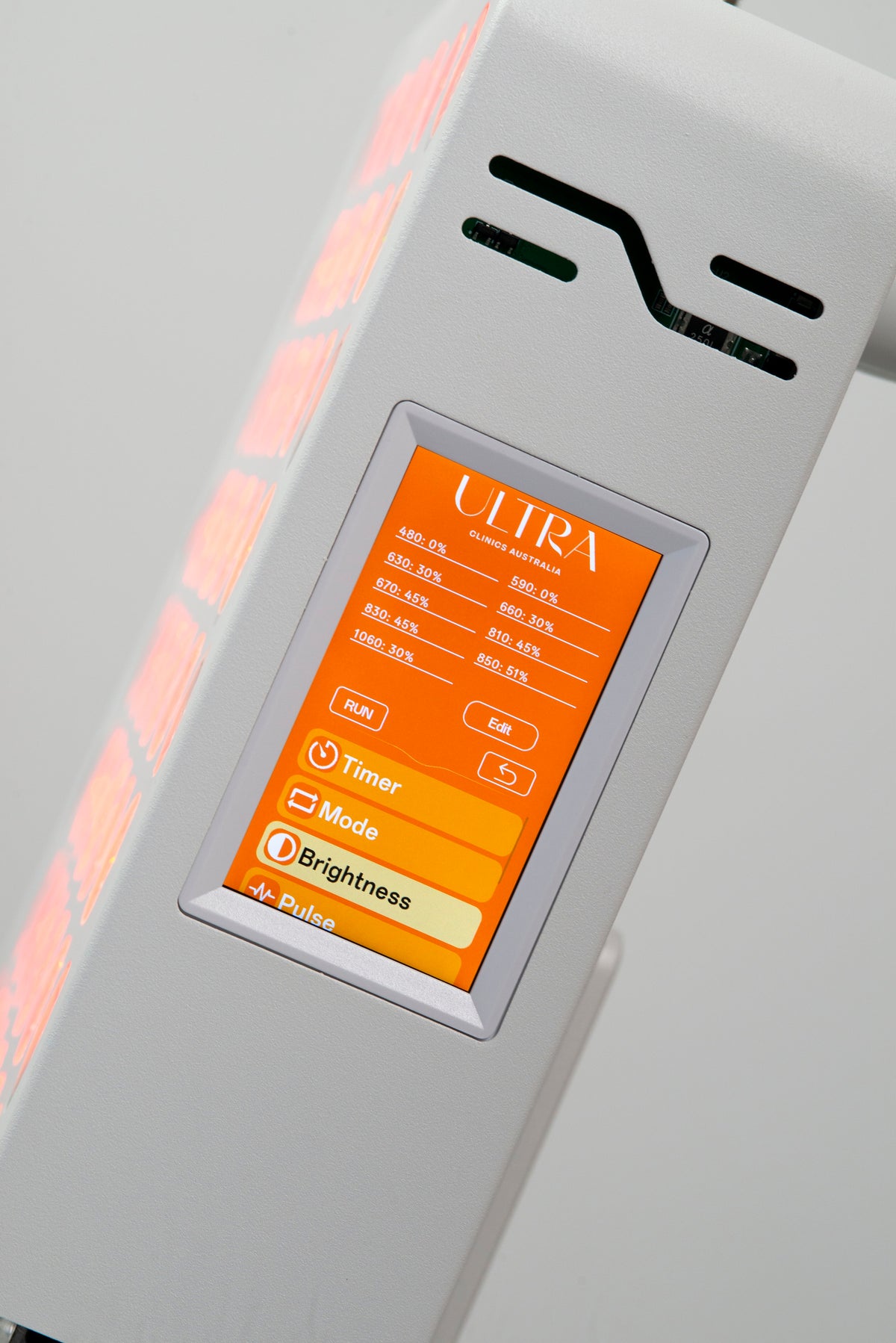

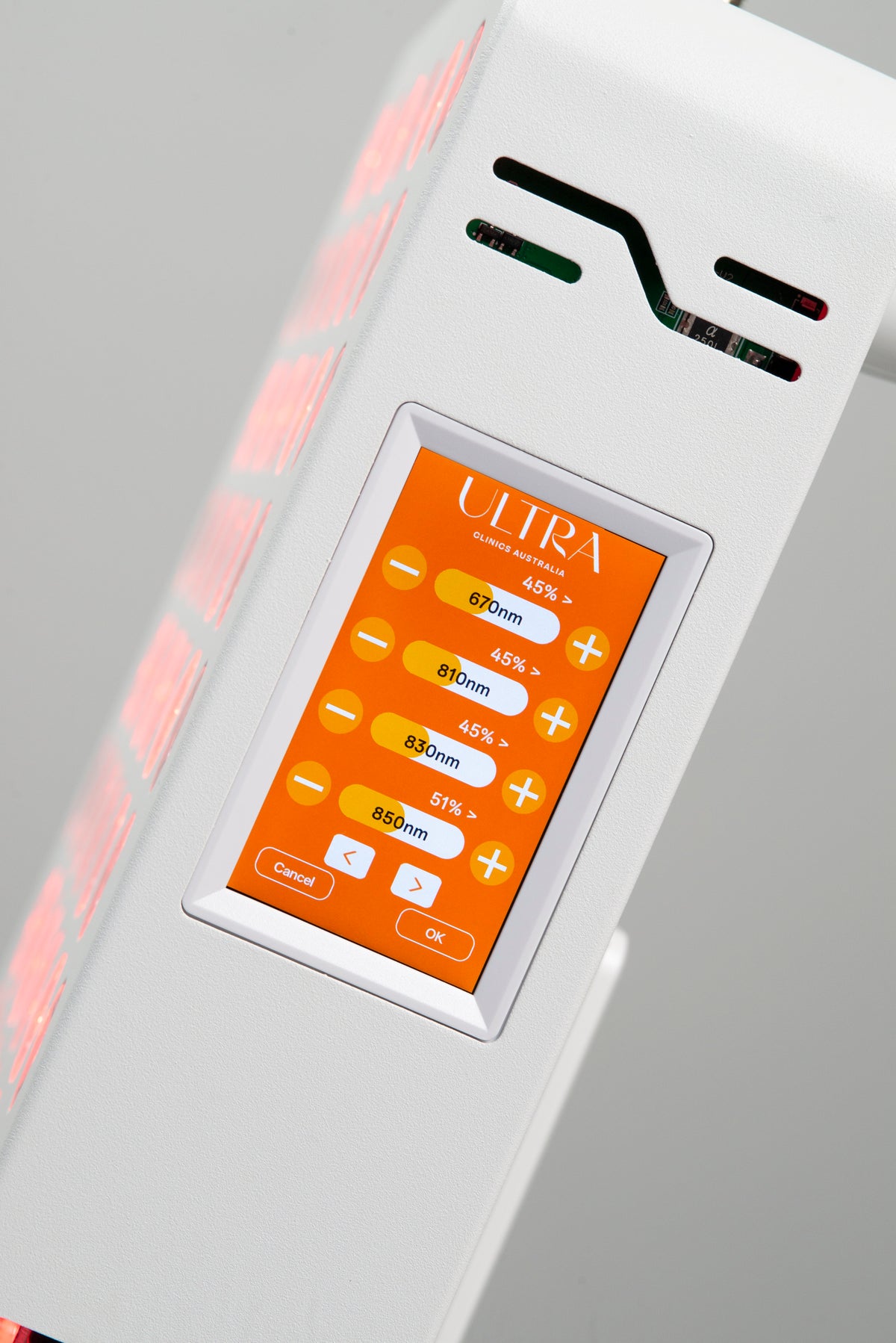

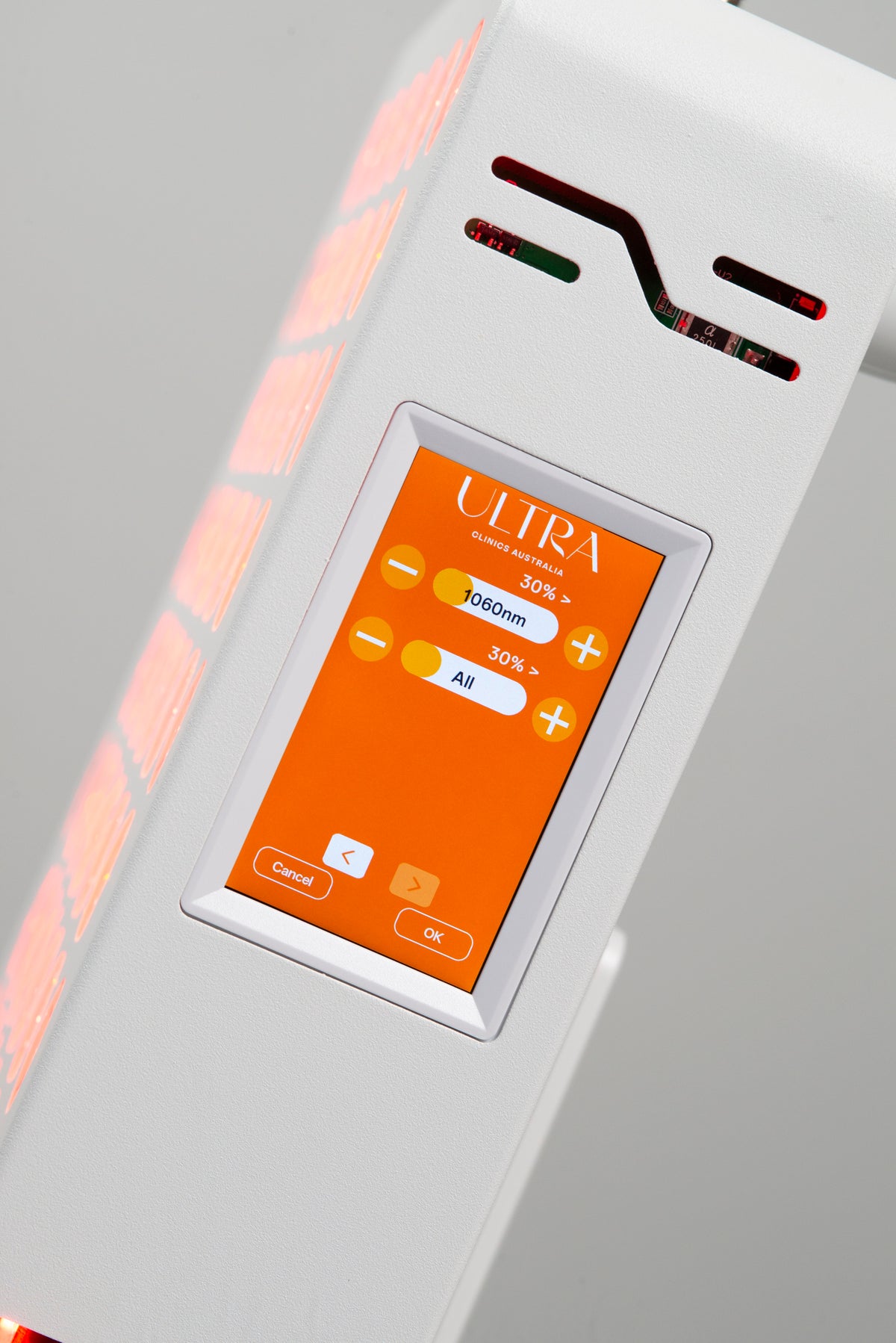

Most panels give you an on switch. The Ultra Mini 100 lets you dim each of its nine wavelengths from 1 to 100% and pulse them from 1 to 10,000 Hz, from the touchscreen or the remote.

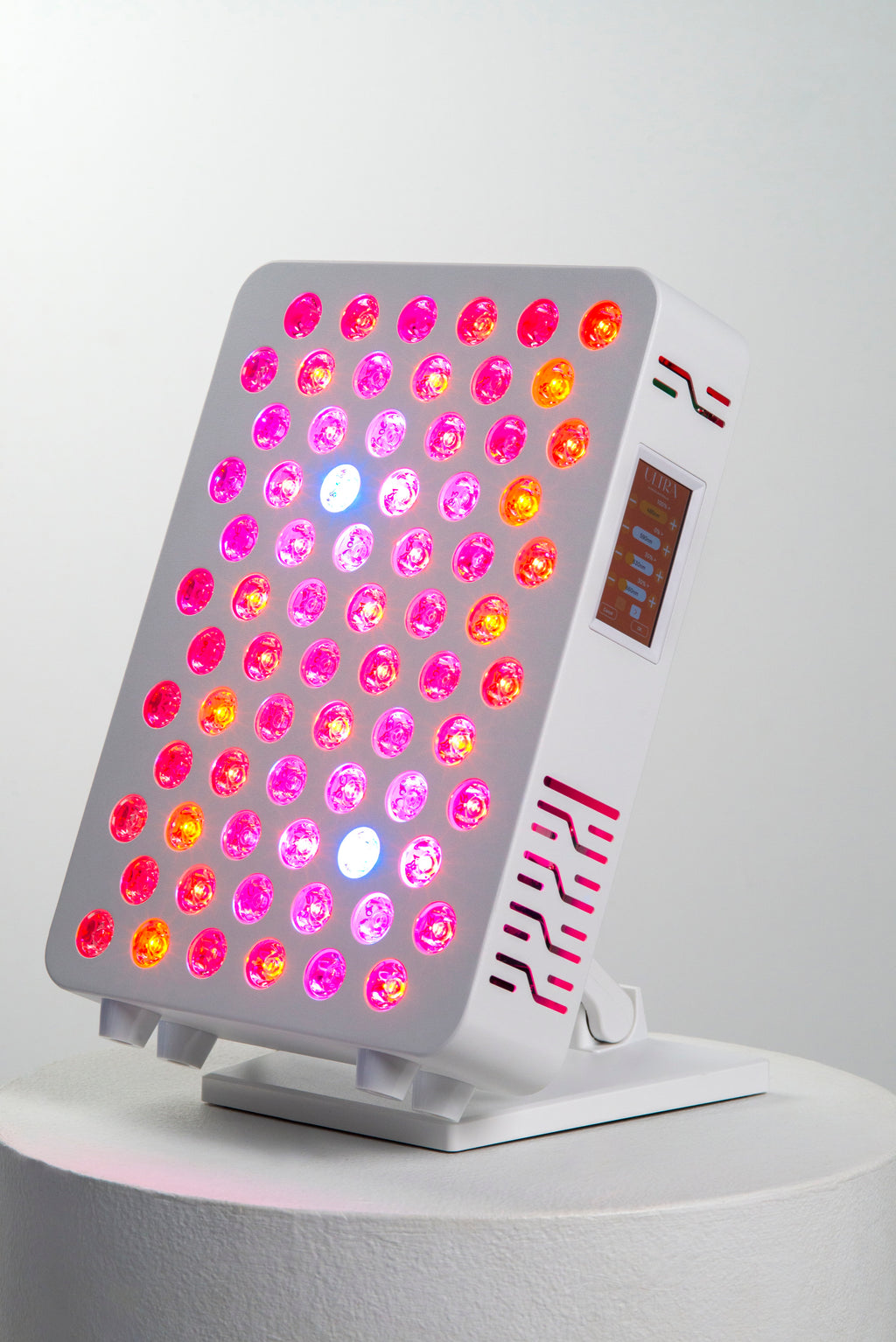

Run the full spectrum, focus on red and near-infrared, or build your own mix.
Quality
Built to medical-device standards
The Ultra Mini 100 is included in the Australian Register of Therapeutic Goods (ARTG 452667) as a Class IIa medical device.
Every Ultra Mini 100 is manufactured and tested to internationally recognised standards for medical electrical equipment, including:
- ISO 13485 and ISO 14971: quality and risk management
- IEC 60601-1, -1-2, -1-6, -1-11 and -2-83: electrical safety, EMC, usability and home light-therapy equipment
- IEC 62471: photobiological safety
- IEC 62304 and EN 62366-1: software and usability engineering
Our promise
Why trust Ultra Clinics
- A real clinic behind every panel. Ultra Clinics Australia are family owned and operated skin specialists, with clinics in Adelaide and Melbourne since 2019. You're buying from practitioners, not a faceless marketplace listing.
- Australian stock, shipped from Adelaide. Every panel is dispatched from our Mile End clinic, and local support is available if you have questions.
- 20-month warranty. Every panel is covered for 20 months, with support from our Australian team if anything goes wrong.
- Specs you can check. Irradiance is quoted with the distance it was measured at, and every wavelength is listed, not just the headline ones.
- Full control, not fixed settings. Dim and pulse each of the nine wavelengths independently, or use one of six built-in programs.
- Clinical quality, without the markup. No paid influencers, no fancy boxes and no huge markups. Here's why our panels cost less.

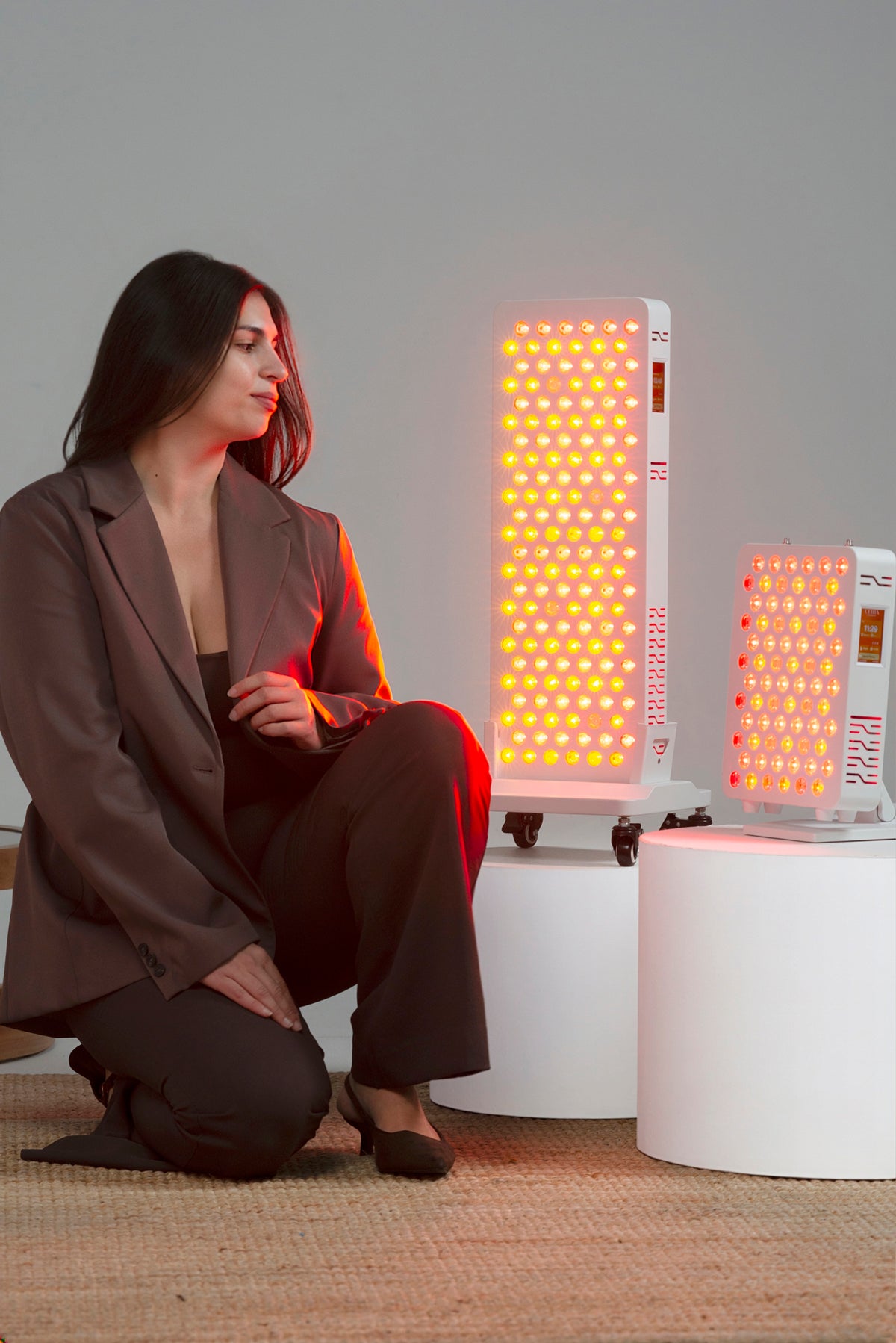

Which panel is right for me?
There's no wrong choice here. Both panels share the same nine wavelengths, controls, programs and 20-month warranty, so you get the same technology either way. The right one simply comes down to your goals and how you prefer to use it.
Ultra Mini 100
$799.00
Best for: targeted sessions on the face, neck, hands or a single area, and anyone short on space.
- Compact, portable and easy to hold
- Sits on a desk, bench or bedside table
- Easy to move between rooms or take away
- LEDs72 dual-chip
- Irradiance≥150 mW/cm² at 15 cm
- Panel size32 × 23 × 6.5 cm
- Weight4.2 kg
- Power draw120 W
- CoverageOne area at a time
Ultra Pro 200
$1,049.00
Best for: larger treatment areas like the back, torso or both legs, and full-body routines.
- Treats a larger area in one session
- Twice the LEDs and higher irradiance
- Optional wheeled floor stand (+$110)
- LEDs144 dual-chip
- Irradiance≥160 mW/cm² at 15 cm
- Panel size64 × 23 × 6.5 cm
- WeightApprox. 6.3 kg
- Power draw240 W
- CoverageTorso or both legs at once
Clinical quality, without the markup
Why our panels cost less
Panels with similar technology often cost significantly more. The difference isn't inside the panel. It's everything that gets added around it.
No paid influencers. Ever.
We don't pay influencers or run sponsored campaigns to sell our panels, so you're not paying for them either.
No fancy boxes
Your panel arrives in protective manufacturer packaging, not a costly presentation box that ends up in the bin.
No huge markups
Our HIFU specialist clinics have been established since 2019, so we don't need to inflate prices to build a brand. We sell direct, at an honest price.
What you pay for is the technology: nine wavelengths, full control, medical-device standards and support from our team in Adelaide.
Our range
From the creators of The Ultra Laser Red Light Mask
Our team also created the Ultra Laser Red Light Mask, a facial device included on the ARTG that uses 288 VCSEL laser diodes across four wavelengths.
The same standards for output, build quality and honest specs go into every panel we sell.
Discover the maskSpecifications
| Panel size | 32 × 23 × 6.5 cm |
| Weight | 4.2 kg |
| LEDs | 72 dual-chip |
| Wavelengths | 480, 590, 630, 660, 670, 810, 830, 850, 1060 nm |
| Irradiance | ≥150 mW/cm² at 15 cm |
| Beam angle | 30° |
| Power draw | 120 W (±10%) |
| Input | 100–240 V AC, 50/60 Hz |
| Pulse | 1–10,000 Hz, per wavelength |
| Dimming | 1–100%, per wavelength |
| Housing | White metal |
| Regulatory | ARTG 452667, Class IIa medical device |
| Warranty | 20 months |
In the box
- Ultra Mini 100 panel
- Power cable

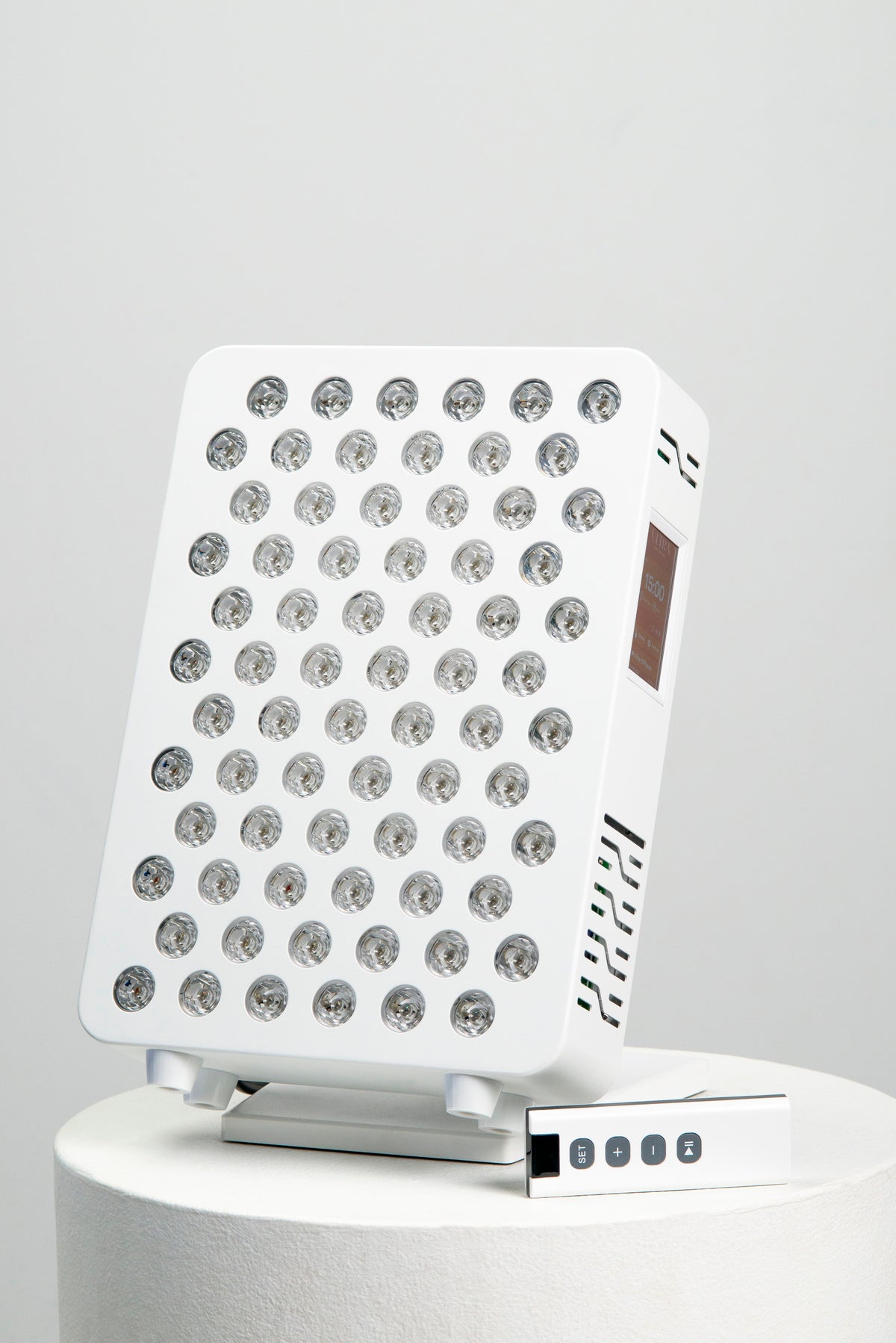

- Remote control
- Protective glasses
- User manual
